Premium 6x12mm Side-View Silicone LED Neon Flex | IP67 Waterproof Flexible Linear Light for Furniture & Cabinet Architectural Accents

Product Overview

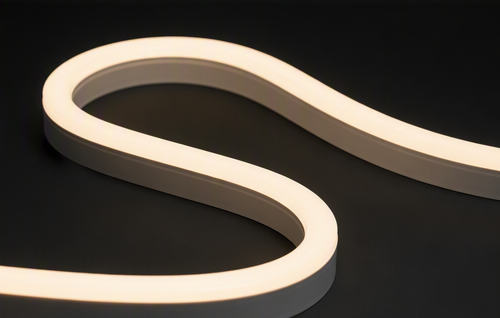

The Premium 6x12mm Side-View Silicone LED Neon Flex is a precision 6.0mm (W) x 12.0mm (H) linear light with a wide 6mm side-emitting window. Engineered for furniture and cabinet makers, joinery workshops, retail display builders and architectural lighting specifiers, it delivers one continuous, dot-free light line with a premium matte-silicone finish - the cleanest way to light a routed slot, reveal, shelf edge or channel profile.

Key Features

• 6mm side-view luminous window - a wide, evenly diffused light face that produces crisp, uniform accent lines in furniture reveals, grooves and aluminium channels.
• High-density 2835 LED chips behind a frosted diffusion layer - no dots, no hot spots, no dark gaps, even at close viewing distance.
• True IP67 waterproof construction - premium matte, UV-resistant silicone extrusion with seamless sealed end caps and waterproof connectors.
• DC24V low-voltage operation - long, dimmable, stable runs with minimal voltage drop; 2oz copper PCB for consistent power delivery.
• Cut-to-length flexibility - cut at factory-marked positions and reseal with the supplied end caps; solderless connector joints keep installation simple.
• High-grade matte silicone body - anti-dust, anti-yellowing and UV-resistant, keeping the emitted colour true for years.

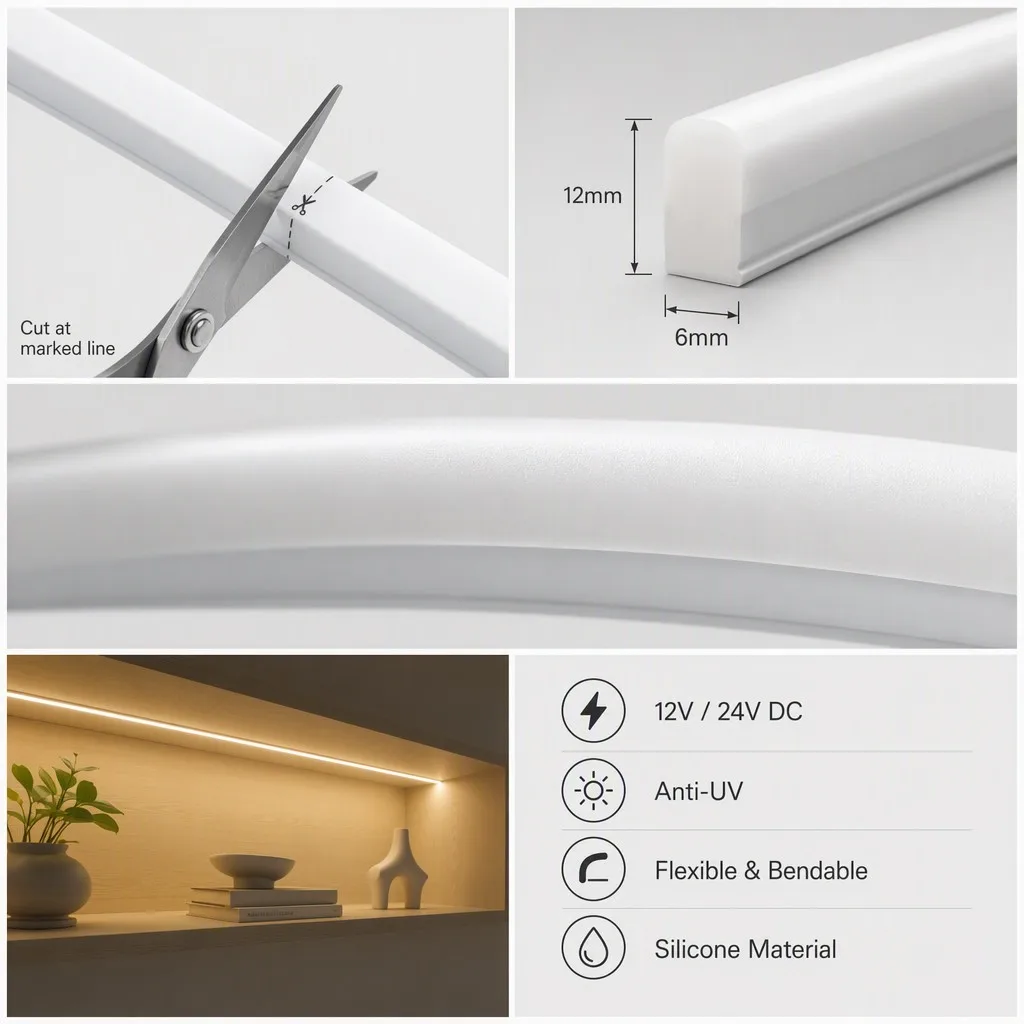

Cut-Anywhere Installation

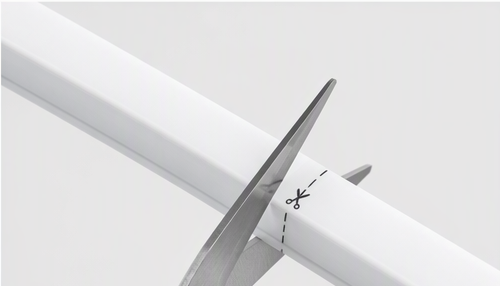

Every reel is marked with precise cutting positions so you can trim the 6x12mm profile to the exact length of each cabinet, shelf or reveal. Cut only at the factory-marked line, seal the fresh end with the supplied cap, and reconnect sections through the waterproof connector system - no specialist tooling, no wasted length.

The 6mm Base Advantage - Flush-Mount Design

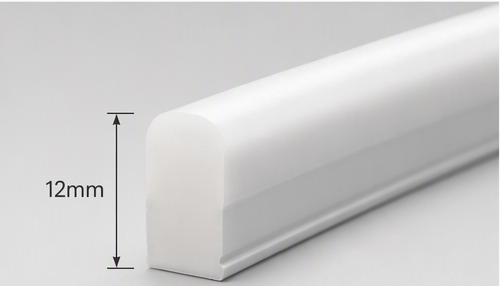

The 6mm luminous face is the defining engineering decision of this profile. Because the light window sits on the wider 6mm base of the extrusion, the strip seats stably in a routed slot or a 6.2mm aluminium mounting profile and emits a broad, even band of light flush with the surrounding surface - not a thin, dim sliver.

• Stable seating: the 6mm base width gives positive, rattle-free location in precision channels and machined grooves.
• Hidden installation: recess the strip so only the 6mm window shows - the surrounding timber, stone or panel becomes the luminaire housing.

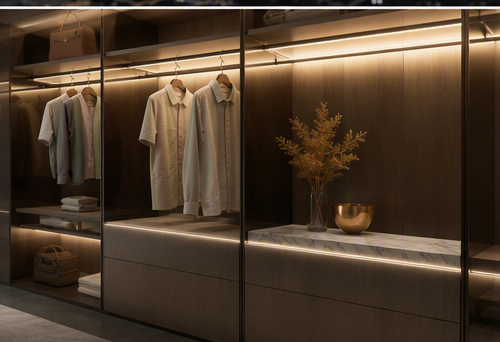

• Edge lighting: ideal for cabinet kick-lines, shelf edges, counter reveals, wardrobe perimeters and display plinths.
• Design freedom: bends flat and on edge for corners, curves and serpentine layouts without kinking or delamination.

True IP67 Waterproof Construction

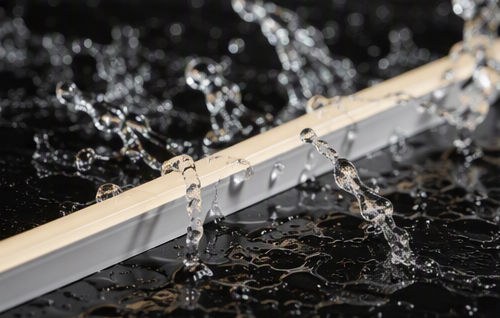

The Premium 6x12mm neon flex is manufactured as a closed, sealed system: the matte silicone extrusion itself is the waterproof barrier, and injection-sealed end caps with waterproof connectors keep moisture, dust and insects out of every cut end and joint. IP67 means dust-tight and protected against temporary immersion - suitable for kitchen and bathroom zones, wet-area joinery and covered outdoor architectural accents when terminations are sealed correctly.

• Seamless sealing: factory-fitted end caps create a dual-barrier seal at every cut end; inline joints use waterproof connector clips.
• UV & chemical resilience: anti-yellowing matte silicone resists mild cleaners used on cabinets, counters and architectural surfaces.
• Proven durability: the construction stays dimensionally stable in warm enclosed channels and passes extended high-temperature testing.
• Safe in humid rooms, behind kick-boards, inside warm coves and under counter overhangs.

Installation Guide

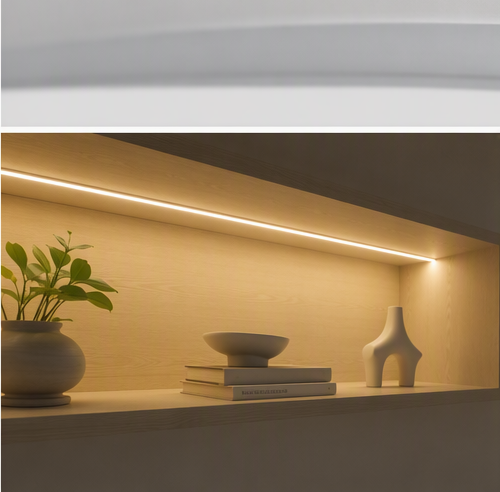

The 6x12mm profile is designed for the hidden recessed method: route a slot slightly wider than 6mm, seat the strip so the luminous window faces the viewer, and let the surrounding material act as the luminaire housing - or slide it into a matching aluminium channel for a clean, serviceable fit.

• Slot preparation: route a channel of roughly 6.2-8mm width x 12-14mm depth so the 6mm window stays fully exposed; keep the reveal width consistent along the run.
• Fixation: continuous thin bead of neutral silicone adhesive, or aluminium channel / stainless clips at regular centres.
• Cutting: cut only at factory-marked positions; seal the fresh end with the supplied cap and reconnect with waterproof connectors.
• Corners and curves: the slim section accepts tight-radius bends - validate the minimum radius against the mounting drawing for production runs.
• Serviceability: sealed ends and connector joints allow a section to be withdrawn and replaced without stripping the whole run.

Voltage, CCT & Power Options

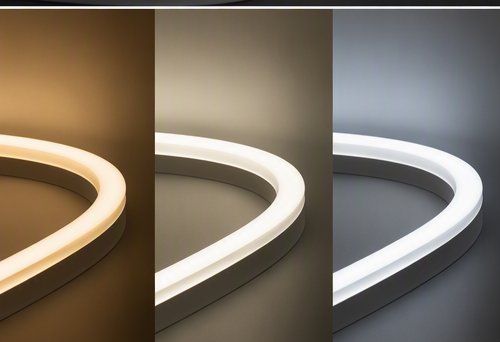

Standard stock runs at DC24V for long, dimmable, voltage-drop-free runs; DC12V configurations are available for short, cut-friendly layouts. Choose from the standard architectural colour temperatures - 3000K warm white, 4000K neutral white and 6000K cool white - with custom CCT and matched-bin production on request. High colour rendering (CRI > 90) keeps timber, stone, fabric and countertop materials looking true.

• 3000K Warm White - cosy, amber-toned light for residential kitchens, wardrobes and boutique interiors.
• 4000K Neutral White - crisp, natural light preferred for display cabinets, retail joinery and workspaces.
• 6000K Cool White - bright daylight colour for high-visibility architectural and commercial accents.
• Run-to-run consistency: order matched-bin reels so adjacent cabinets and multi-room runs read as one continuous line.

Professional FAQ

1. What is a 6x12mm side-view LED neon flex, and where is the light emitted?

The numbers are the finished cross-section: 6.0mm wide and 12.0mm high. "Side-view" means the light exits the wide 6mm side window rather than the top face, which makes the profile ideal for routed slots, reveals and channels in furniture, cabinets, wardrobes and architectural panels.

2. What is the 6mm base advantage of this profile?

The 6mm-wide luminous base seats stably in a 6.2mm aluminium channel or routed groove and emits a broad, even accent band flush with the surface. Compared with narrower side-view profiles it reads as a cleaner, more substantial line of light - the reason it is specified for cabinet kick-lines, shelf edges and counter reveals.

3. Is it really IP67 waterproof?

Yes. The premium matte silicone body is fully sealed with seamless end caps, and connectors are waterproof. IP67 means dust-tight and protected against temporary immersion - suitable for kitchen and bathroom zones as well as covered outdoor architectural accents when ends are sealed correctly.

4. Can I cut it to length on site?

Yes. Cut only at the factory-marked positions shown on the strip, seal the fresh cut with the supplied end cap, and reconnect through the waterproof connector system. For large programs, order pre-cut, pre-terminated lengths so every joint arrives factory-sealed.

5. Can it be dimmed and integrated with smart-home systems?

Yes. The DC24V low-current profile dims smoothly with compatible PWM or phase-cut constant-voltage drivers and integrates with presence sensors, daylight sensors and app-based control hubs. Our engineers provide free wiring diagrams for projects.

6. Which CCT should I choose for cabinets and furniture?

4000K is the most common neutral choice for kitchens and display joinery; 3000K gives a warmer residential feel; 6000K suits cool, technical retail settings. All are available from stock, and we can supply mixed-CCT runs under matched-bin control.

7. How bright is it and what power does it draw?

With high-density 2835 LED chips and CRI > 90 colour quality, the profile delivers a bright, uniform light line engineered for stable performance at up to 25W/m with a cool ≤40°C surface temperature thanks to the thermal management design.

8. How long can one continuous run be?

With the 2oz copper PCB and DC24V architecture, a single feed reliably powers long continuous runs for typical furniture lines. Confirm the exact maximum wattage and run length with our engineers, who will specify power injection points where a layout exceeds it.

9. How do I avoid visible dots or hot spots?

The high-density 2835 LED array sits behind a continuous frosted diffusion layer. This combination lowers source spacing and brightness so the window reads as one uninterrupted light line even at close range.

10. Can it be bent around corners and tight radii?

Yes. The flexible matte silicone body accepts tight-radius bends and holds curves without kinking. For production runs, validate your minimum radius and bend plane against the mounting drawing before mass fabrication.

11. Will the silicone yellow or degrade over time?

No. The body is a high-grade matte silicone extrusion that is anti-dust, anti-yellowing and UV-resistant, so the light line keeps its colour character for years of use in warm, bright interiors.

12. What documentation and support is provided for projects and exports?

Each order can include datasheets, installation drawings, CE and RoHS documentation, and test reports. For tenders we also provide bending-radius validation, driver sizing and matched-bin samples before mass production, plus custom lengths, custom CCT and private-label options.

LEDLetsGo is a manufacturer of premium LED strip lights and LED neon flex with in-house production, batch testing and dedicated engineering support - a complete sourcing partner for furniture brands, joinery workshops, display builders and lighting distributors.
