Wholesale Cut Anywhere Flexible COB Led Strip Light CRI>90 For Indoor Furniture

Technical Specifications

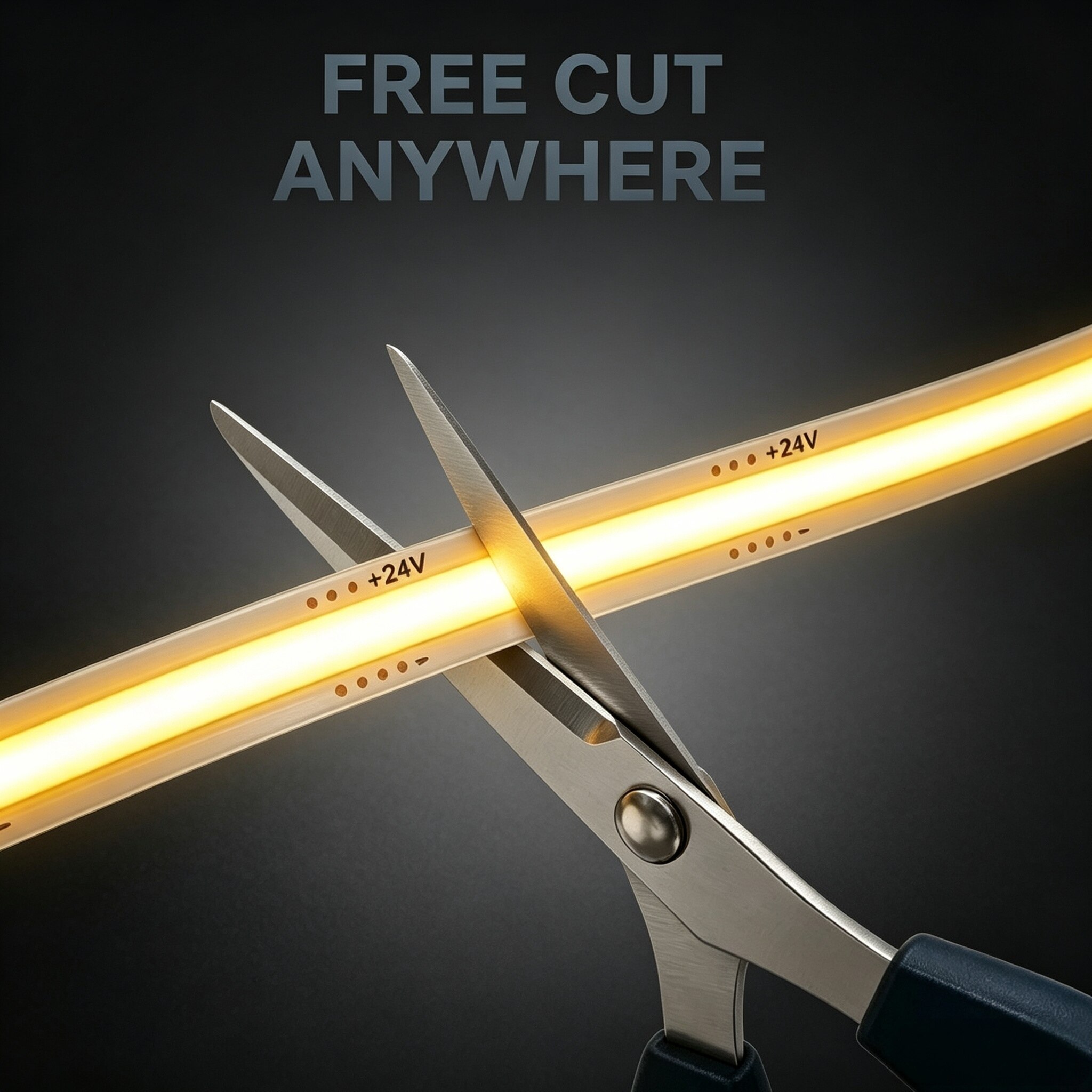

Core Technology: The 'No-Limit' Cut

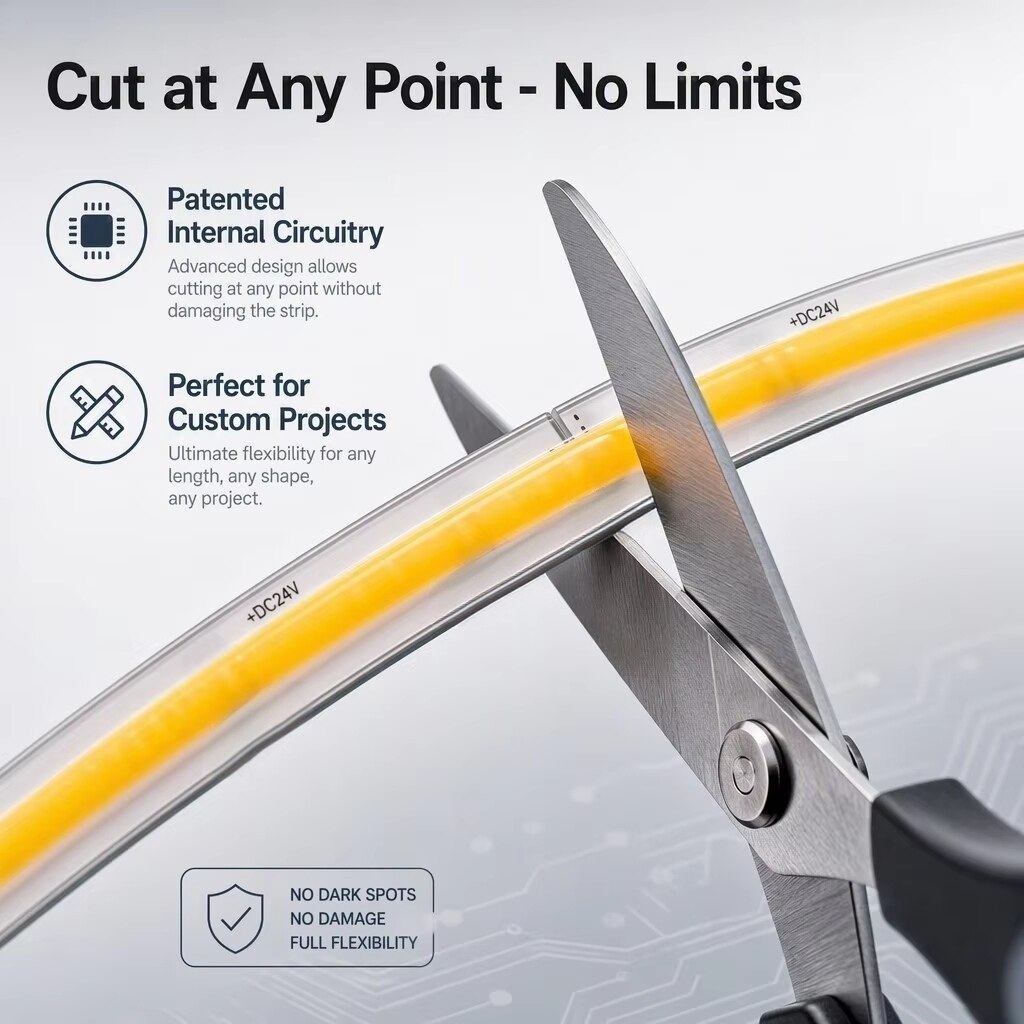

Conventional COB strips can only be cut at printed cut lines, which forces installers to waste material or adapt their design around the marks. The Cut Anywhere series removes that constraint entirely. Using a proprietary internal circuit architecture with parallel power distribution at every chip node, the strip can be trimmed at ANY point along its length without losing function on the remaining section. Each cut edge is sealed by the double-sided 2oz copper pad structure, so the exposed end can be soldered directly to a power lead or joined to another section. This no-limit cutting technology dramatically reduces waste on bespoke joinery, reduces install time, and lets designers fit exact custom lengths with millimeter precision.

Premium Material & Advantage

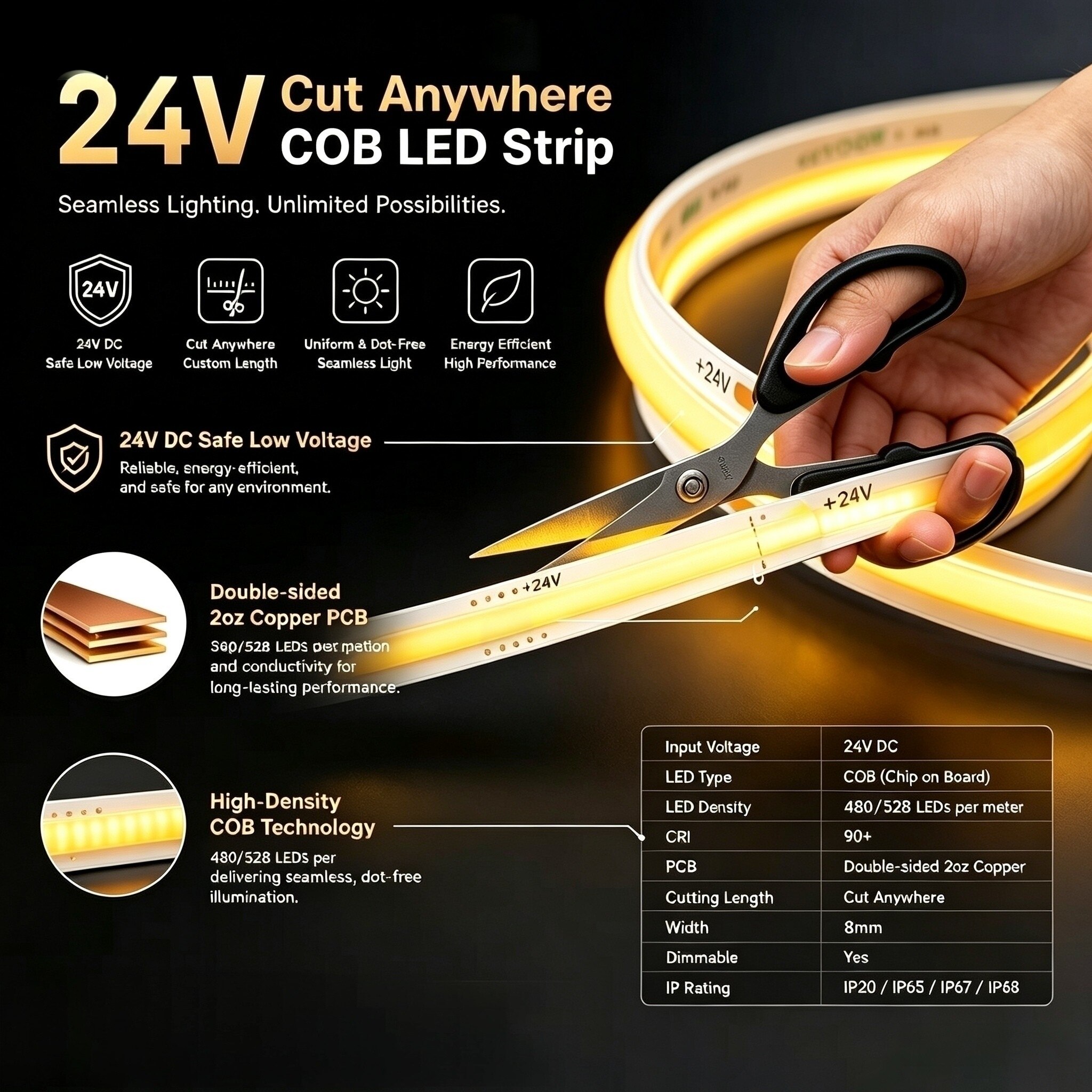

The Cut Anywhere strip is manufactured on a professional double-sided 2oz (35um) copper PCB. The double-sided copper construction halves resistive losses along the strip, which is decisive for DC24V long-distance installations: 24V carries the same power at half the current of a 12V system, so a single feed supports longer runs with negligible voltage drop, and the 2oz copper maintains uniform brightness from feed point to far end. The 35um copper layer also acts as a lateral heat spreader, keeping the 9W/m load cool inside enclosed profiles and timber joinery. The combination of 24V architecture and double-sided copper delivers the longest reliable single-run lengths in the LEDLetsGo COB family.

Luxury Application Scenarios

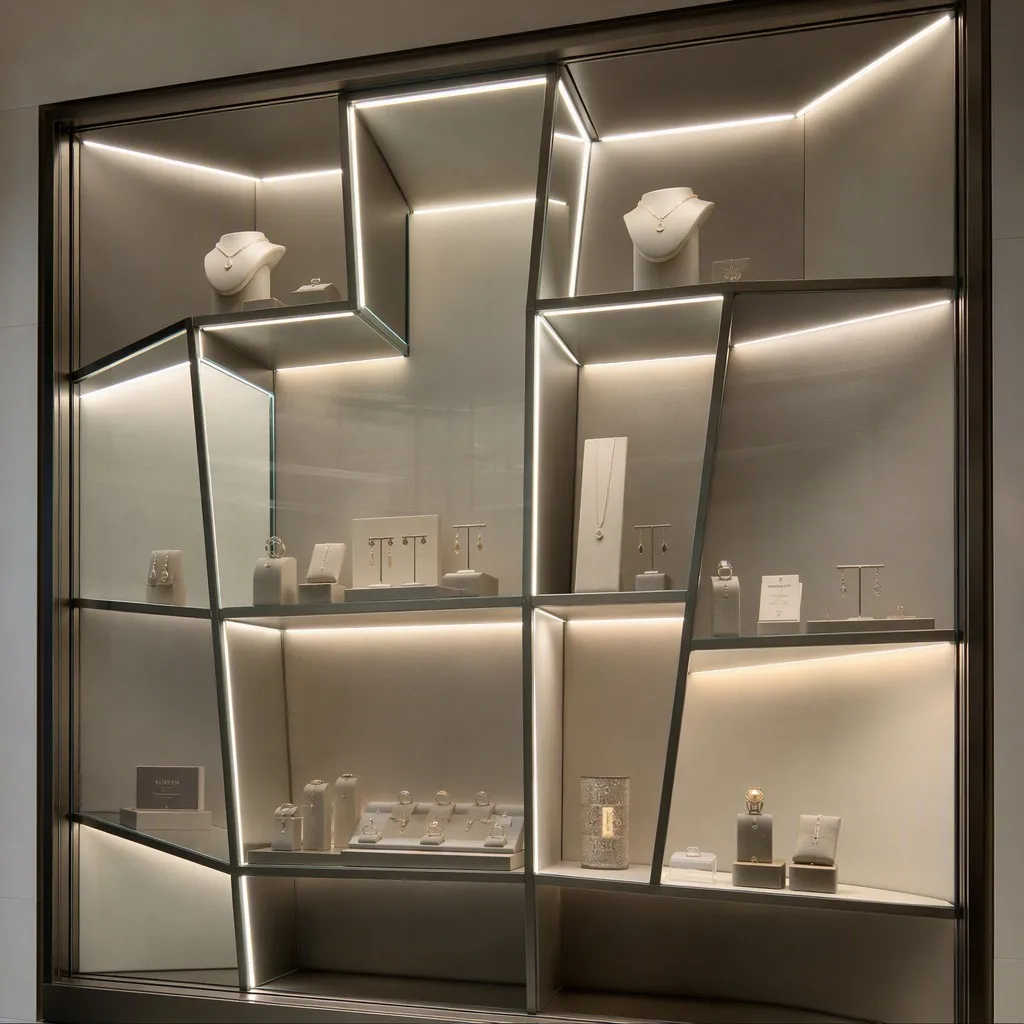

Designed for custom furniture workshops and high-end interior projects, the Cut Anywhere strip excels in bespoke cabinet slotting: joinery shops cut the strip to exact groove lengths on site, eliminating offcuts and scrap. It is ideal for custom wardrobe inserts, kitchen islands, display plinths, shelving systems, hotel joinery and boutique retail fittings where every millimetre counts. Because the strip can be trimmed anywhere, it adapts to non-standard furniture modules and retrofit upgrades without redesign, making it the preferred choice for premium furniture brands and their lighting suppliers.

Professional Installation Guide

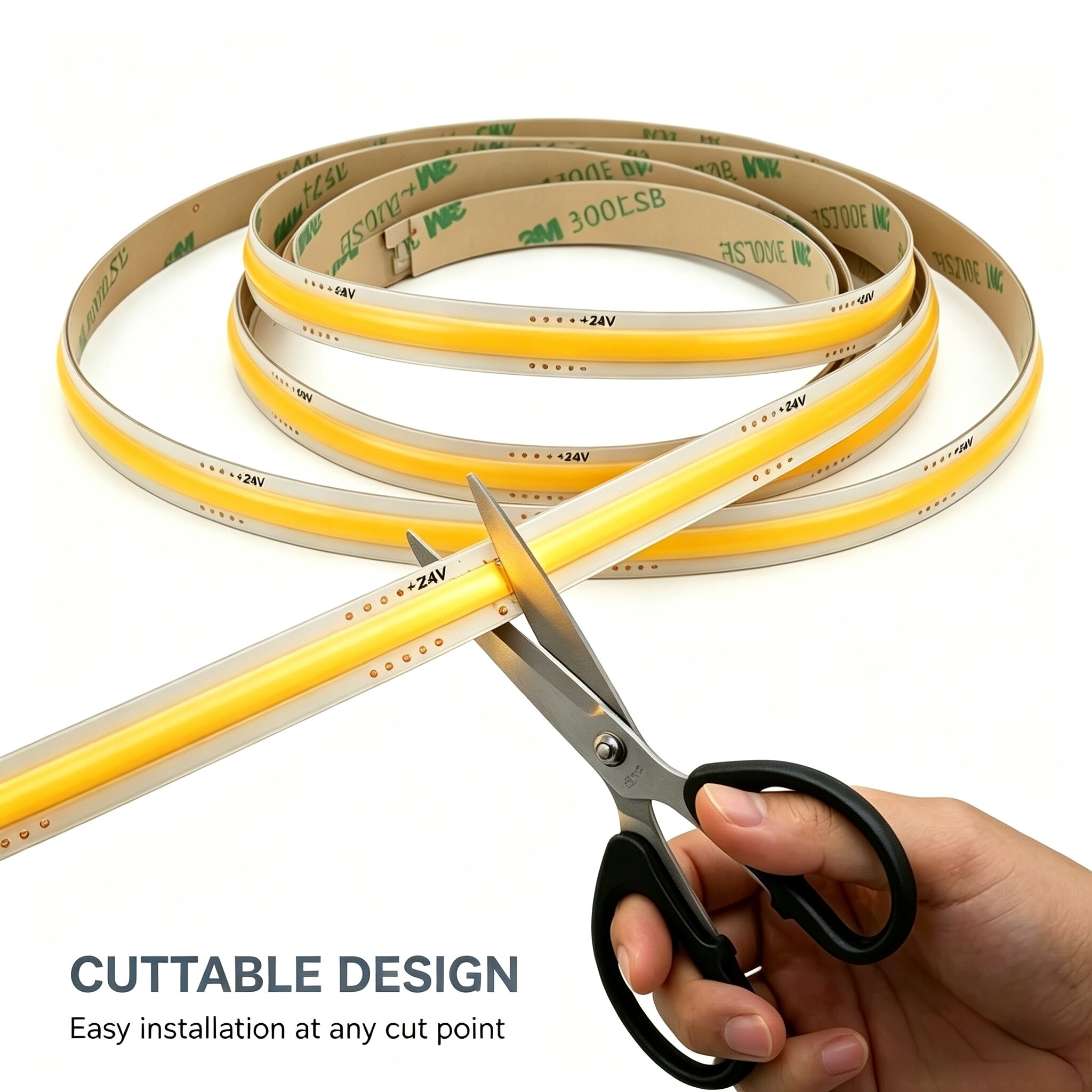

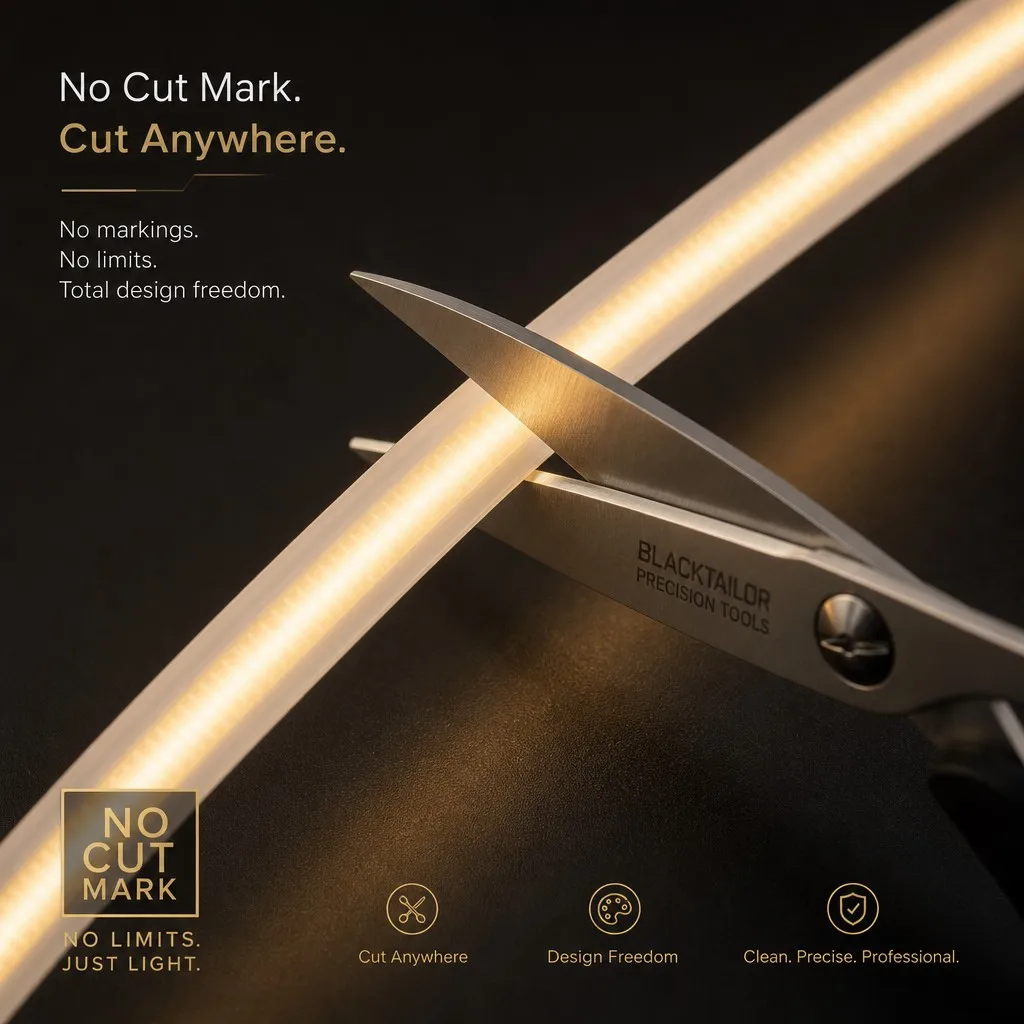

1. Measure the groove and cut the strip at any point with sharp scissors or a utility knife — no cut-line alignment needed.

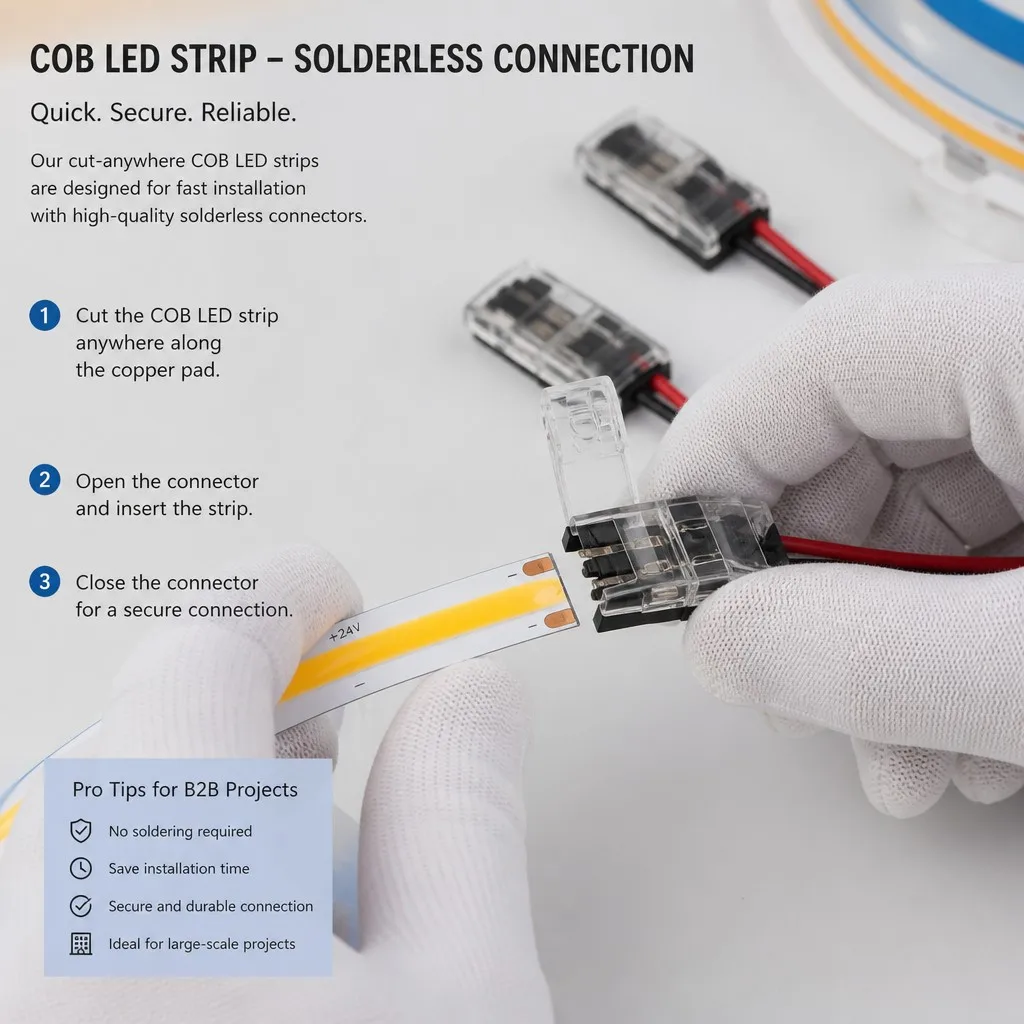

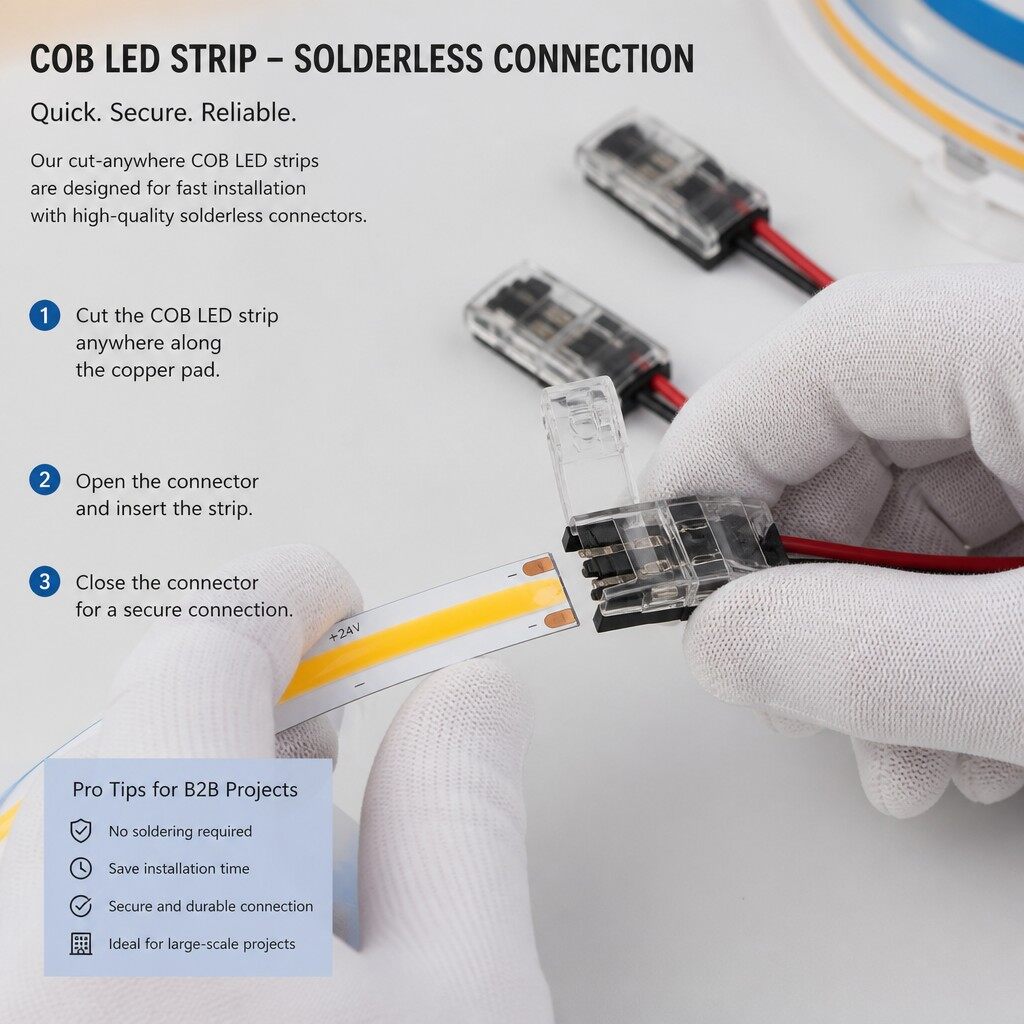

2. Use a solderless connector to attach wires to the end of the light strip.

3. Clean the mounting surface and press down evenly on the 3M 300LSE adhesive backing to ensure a secure bond.

4. Feed power from both ends for runs above 10m at DC24V to eliminate voltage drop.

5. Size the driver at 1.2x total wattage (metres x 9W/m).

6. Use a 2kHz+ PWM dimmer for flicker-free dimming, or TRIAC/0-10V/DALI with the matching driver.

7. Maintain a 25mm minimum bend radius; use corner connectors for sharp 90° turns.

Professional Sourcing FAQ

1. What does "Cut Anywhere" mean exactly?

It means the strip can be trimmed at any point along its length without losing function — there are no fixed cut lines. The internal parallel circuit keeps every remaining section operational, so you can cut to exact millimetre lengths.

2. How do I cut the strip safely?

Using sharp scissors or a utility knife at the designated location, make a clean cut between the chipsets. Connect the power wires to the exposed copper pads using solder or solderless connectors.

3. Does cutting anywhere affect brightness or color?

No. The parallel architecture distributes power evenly at every node, so the remaining section maintains full brightness and identical color temperature after cutting.

4. Why is the Cut Anywhere series designed around DC24V?

24V carries the same power at half the current of 12V, which halves resistive losses and voltage drop. This allows significantly longer single-run lengths and thinner supply wiring — ideal for large furniture installations.

5. How does the 9W/m rating affect heat?

The 9W/m load is well balanced for the 2oz double-sided copper PCB, which spreads heat laterally along the strip. Installed in an aluminium profile, the strip stays cool enough for continuous operation inside enclosed timber structures.

6. What makes the double-sided 2oz (35um) copper PCB special?

Double-sided 2oz copper doubles the conductive cross-section, reducing voltage drop, improving heat spreading and boosting long-term reliability — the foundation of the no-limit cut architecture and long-run capability.

7. What is the voltage drop behaviour on long runs?

At 24V with 2oz copper, a single feed supports runs up to approximately 10m with negligible dimming. Beyond that, add a second feed at the far end or insert parallel injection points to maintain uniform brightness.

8. Is the strip fully dimmable?

Yes — 0-100% with PWM dimmers (2kHz+ recommended for flicker-free camera output), TRIAC with a compatible dimmable driver, or 0-10V/DALI converters matched to the 24V system.

9. What is the CRI and is it consistent?

CRI > 90 standard, with 95/97 grades available. Chips are binned before production and every batch is tested for flux, CCT and CRI, holding CCT within ±50K and CRI within ±1 at the same bin code.

10. What is the expected lifespan?

50,000 hours (L70) at rated voltage with proper mounting. The 24V low-current design and double-sided copper keep junction temperatures low, preserving output and color stability.

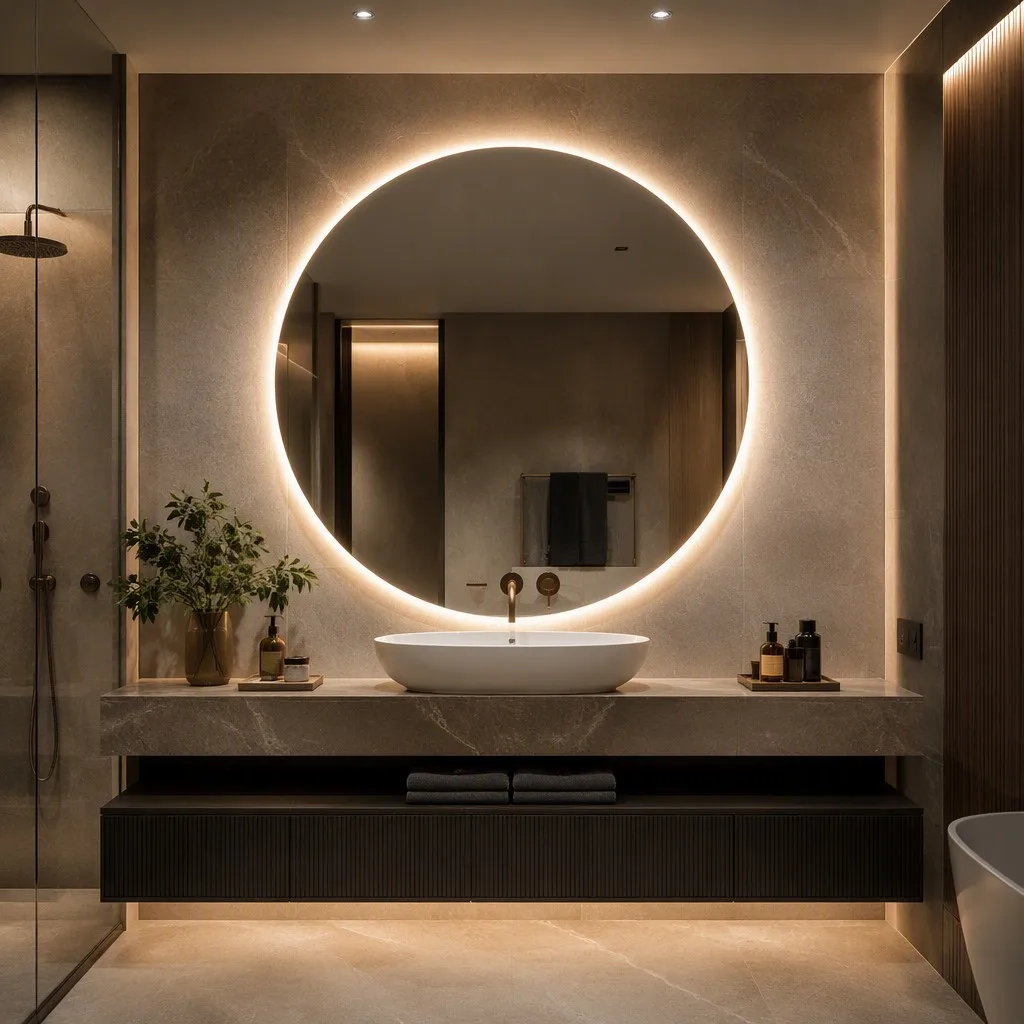

11. Can the strip be used in mirrors and glass applications?

Yes — the COB construction with 480/512 LEDs/m reads as a continuous dot-free light line in mirror reflections, glass shelves and polished surfaces, making it ideal for luxury vanity and display cabinetry.

12. What accessories work with the strip after cutting?

Use solderless clamp connectors, soldered links, corner connectors and standard 2-pin COB connectors with 8mm pitch, plus aluminium profiles with frosted diffusers for direct-view installations.

13. Is a waterproof version available?

The standard version is IP20 for dry indoor furniture lighting. Custom IP65 /Ip67/Ip68 waterproof are available for bulk orders requiring moisture resistance.

14. What is the minimum order quantity for wholesale?

Standard MOQ is 100 reels (500m), with sample reels dispatched within 24-48 hours before ordering. Trial and stocking orders can be arranged with our sales team.

15. What OEM/ODM options are available?

Custom CCT (2200K-6500K), custom CRI, custom lengths and reel sizes, private-label printing, custom connectors and packaging — with full technical documentation for your product page.

16. Why is the Cut Anywhere design ideal for furniture slotting?

Joinery workshops can trim the strip to exact groove dimensions on site, eliminating offcuts and scrap. The no-limit cut also simplifies retrofitting into non-standard modules and reduces installation time.

17. How should the strip be stored?

Store reels in original packaging at room temperature and low humidity. Unroll only the required length and avoid tight coils for extended periods to preserve PCB and adhesive integrity.

18. Which certifications apply?

The production of the LED strips complies with CE and RoHS standards, making them suitable for lighting markets in Europe, the Americas, Australia, and elsewhere.

19. Can the strip be joined end-to-end after cutting?

Yes. Cut at the desired point, seal the end, and join sections with solderless connectors or soldered links at the copper pads. Joined sections maintain full brightness with matched bin codes.

20. Why choose LEDLetsGo for the Cut Anywhere series?

LEDLetsGo combines in-house COB manufacturing, the proprietary no-limit cut architecture, strict batch testing and dedicated engineering support — a complete sourcing partner for furniture brands, distributors and lighting contractors.

Engineering Notes: 24V Architecture & No-Limit Cut Design

Two engineering decisions define the Cut Anywhere series: the 24V power architecture and the parallel no-limit circuit. The 24V choice means the strip operates at half the current of an equivalent 12V system, which reduces conductor heating, minimizes voltage drop across long runs and allows the use of thinner, more flexible supply cables inside furniture channels. Combined with the double-sided 2oz copper traces, a single 24V feed reliably powers runs of up to 10 metres before any supplementary injection is needed — a decisive advantage in walk-in wardrobes and kitchen islands where power points are scarce. The no-limit cut circuit distributes power through parallel chip groups rather than a serial chain, so severing the strip at any point never interrupts the remaining sections. This architecture also makes field repairs practical: a damaged section can be cut away and the strip rejoined with a solderless connector, restoring full function without replacing the whole run. For OEM furniture programs, this translates into lower scrap rates, faster installation and simpler service logistics.

21. Can I use this strip with smart-home systems?

Yes. The 24V low-current profile integrates with presence sensors, daylight sensors and app-controlled PWM dimming hubs. Our engineering team provides free integration guidance and wiring diagrams for smart-home and hospitality projects.
